722500
Housing
No.
Shaft dia
d1
(in)

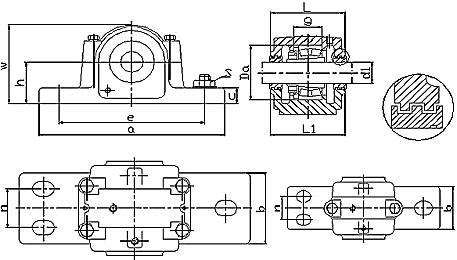

Dimensions(mm) Housing
Wt (kg)
Bearing
No.
Adapter
Sleeve
Locating Ring Housing
No.
D
H8
g
H12
h
h12
w L (L1) a b c e
max
e
min
n S
Number QTY
SAF609 1-7/16 100 46 69.9 135 105 108 245 70 25 200.2 187.5   M16
(2)
7.2 1309K
2309K
21309K
22309K
HA309
HA2309
HA309
HA2309
FR100x10.5
FR100x10
FR100x10.5
FR100x10
2
1
2
1
SAF609
SAF610 1-11/16 110 51 76.2 148 114 118 270 70 29 228.6 196.9   M16
(2)
9.2 1310K
2310K
21310K
22310K
HA310
HA2310
HA310
HA2310
FR110x11.5
FR110x10
FR110x11.5
FR110x10
2
1
2
1
SAF610
SAF611 1-15/16 120 53 82.6 157 121 124 279 80 30 241.3 206.5   M16
(2)
11 1311K
2311K
21311K
22311K
HA311
HA2311
HA311
HA2311
FR120x12
FR120x10
FR120x12
FR120x10
2
1
2
1
SAF611
FSAF611 1-15/16 120 53 82.6 157 121 124 279 80 30 241.3 206.5 51 M12
(4)
11 1311K
2311K
21311K
22311K
HA311
HA2311
HA311
HA2311
FR120x12
FR120x10
FR120x12
FR120x10
2
1
2
1
FSAF611
SAF613 2-3/16 140 58 88.9 176 133 137 330 90 32 279.4 244.6   M20
(2)
13.3 1313K
2313K
21313K
22313K
HA313
HA2313
HA313
HA2313
FR140x12.5
FR140x10
FR140x12.5
FR140x10
2
1
2
1
SFA613
FSAF613 2-3/16 140 58 88.9 176 133 137 330 90 32 279.4 244.6 54 M16
(4)
13.3 1313K
2313K
21313K
22313K
HA313
HA2313
HA313
HA2313
FR140x12.5
FR140x10
FR140x12.5
FR140x10
2
1
2
1
FSAF613
SAF615 2-7/16 160 65 101.6 197 149 159 349 100 33 295.4 263.7   M20
(2)
21 1315K
2315K
21315K
22315K
HA315
HA2315
HA315
HA2315
FR160x14
FR160x10
FR160x14
FR160x10
2
1
2
1
SAF615
FSAF615 2-7/16 160 65 101.6 197 149 159 349 100 33 295.4 263.7 54 M16
(4)
21 1315K
2315K
21315K
22315K
HA315
HA2315
HA315
HA2315
FR160x14
FR160x10
FR160x14
FR160x10
2
1
2
1
FSAF615
SAF616 2-11/16 170 68 108 210 156 165 362 100 33 320.8 270   M20
(2)
24 1316K
2316K
21316K
22316K
HA316
HA2316
HA316
HA2316
FR170x14.5
FR170x10
FR170x14.5
FR170x10
2
1
2
1
SAF616
FSAF616 2-11/16 170 68 108 210 156 165 362 100 33 320.8 270 54 M16
(4)
24 1316K
2316K
21316K
22316K
HA316
HA2316
HA316
HA2316
FR170x14.5
FR170x10
FR170x14.5
FR170x10
2
1
2
1
FSAF616
SAF617 2-15/16 180 70 114.3 222 165 172 387 111 45 333.5 295.4   M24
(2)
27 1317K
2317K
21317K
22317K
HA317
HA2317
HA317
HA2317
FR180x14.5
FR180x10
FR180x14.5
FR180x10
2
1
1
1
SAF617
FSAF617 2-15/16 180 70 114.3 222 165 172 387 111 45 333.5 295.4 61 M20
(4)
27 1317K
2317K
21317K
22317K
HA317
HA2317
HA317
HA2317
FR180x14.5
FR180x10
FR180x14.5
FR180x10
2
1
1
1
FSAF617
SAF618 3-3/16 190 74 120.7 233 168 175 394 111 51 342.9 304.8 57 M20
(4)
29.5 1318K
2318K
21318K
20318K
22318K
HA318
HA2318
HA318
HA318
HA2318
FR190x11.5
FR190x10
FR190x15.5
FR190x15.5
FR190x10
2
1
2
2
1
SAF618
SAF620 3-7/16 215 83 133.3 260 181 187 419 121 54 368.3 336.6 70 M20
(4)
42 1320K
2320K
20320K
21320K
22320K
HA320
HA2320
HA320
HA320
HA2320
FR215x18
FR215x10
FR215x18
FR215x18
FR215x10
2
1
2
2
1
SAF620
SAF622 3-15/16 240 90 152.4 292 197 203 467 130 61 406.4 371.6 83 M20
(4)
50 1322K
20322K
21322K
22322K
HA322
HA322
HA322
HA2322
FR240x20
FR240x20
FR240x20
FR240x10
2
2
2
1
SAF622
SAF624 4-3/16 260 96 160.4 318 207 213 540 160 64 463.6 431.8 95 M24
(4)
72 20324K
22324K
HA3124
HA2324
FR260x20.5
FR260x10
2
1
SAF624
SAF626 4-7/16 280 103 169.9 338 216 222 559 160 67 489 441.5 95 M24
(4)
77.7 20326K
22326K
HA3126
HA2326
FR280x22.5
FR280x10
2
1
SAF626
SAF628 4-15/16 300 112 179.4 360 235 238 629 172 70 549.4 492.3 108 M24
(4)
95 20328K
22328K
HA3128
HA2328
FR300x25
FR300x10
2
1
SAF628
SAF630 5-3/16 320 118 190.5 378 245 248 680 181 76 600.2 530.4 117.6 M24
(4)
118 20330K
22330K
HA3130
HA2330
FR320x26.5
FR320x10
2
1
SAF630
SAF632 5-7/16 340 124 200 398 267 270 711 191 80 619.3 549.4 114.3 M30
(4)
128 20332K
22332K
HA3132
HA2332
FR340x28
FR340x10
2
1
SAF632
SAF634 5-15/16 360 130 209.6 419 279 286 749 203 86 635 571.5 127 M30
(4)
150 22334K HA2334 FR360x10 1 SAF634
SAF636 6-7/16 380 136 225.4 451 282 289 794 210 89 676 610 133 M30
(4)
170.2 22336K HA2336 FR380x10 1 SAF636
SAF638 6-15/16 400 142 241.3 473 298 305 832 222 95 708.2 628.7 133.4 M30
(4)
198 22338K HA2338 FR400x10 1 SAF638
SAF640 7-3/16 420 148 250.8 508 299 306 870 229 102 749 667 140 M30
(4)
255 22340K HA2340 FR420x10 1 SAF640
